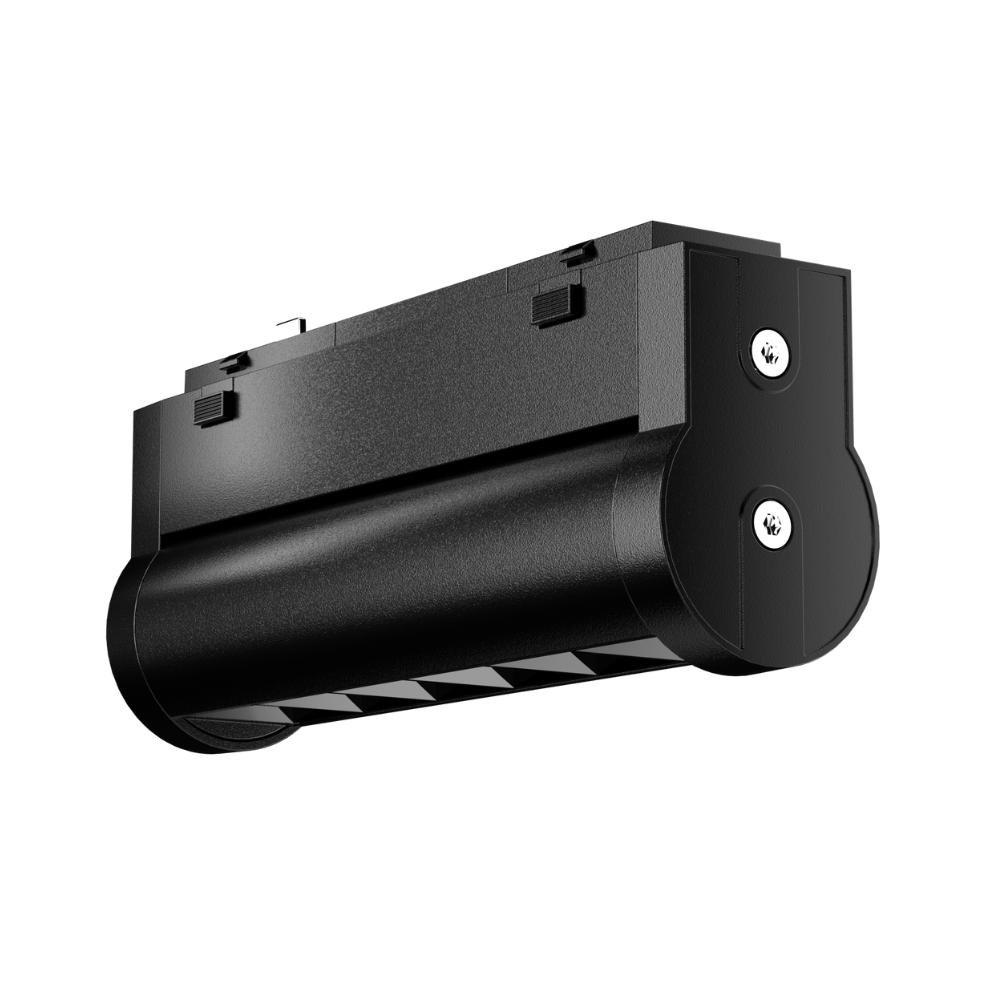

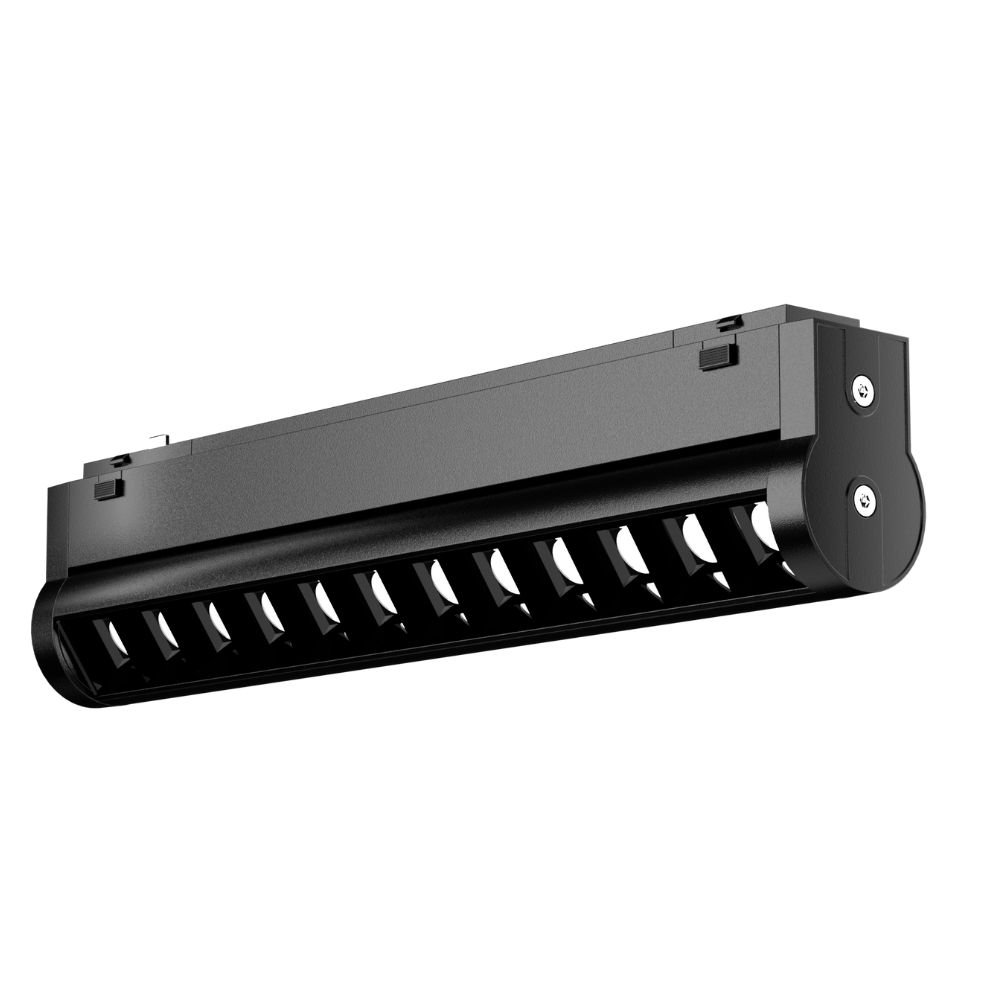

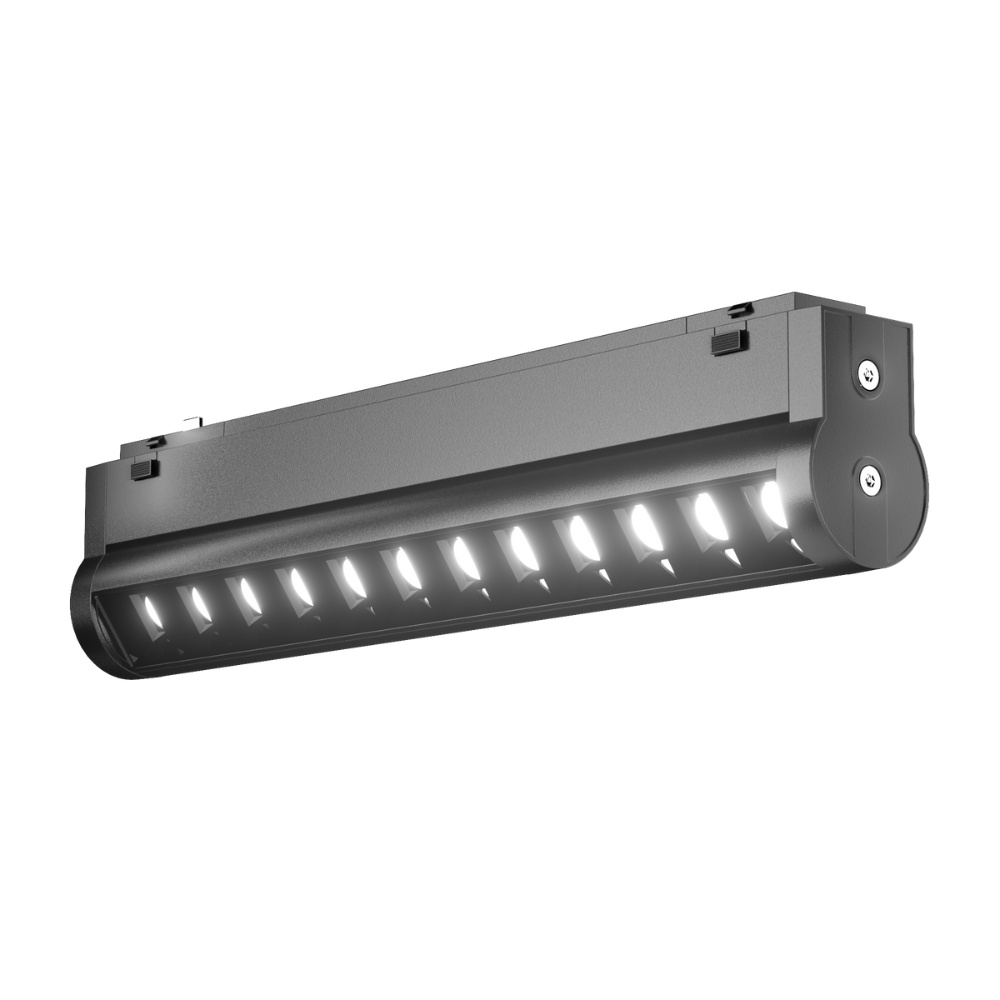

6W / 12W / 18W 48V Magnetic LED Light Folding Grille Light

Model No.
CX23D06A / CX23D12A / CX23D18A
Light Type
Magnetic Track Light
Rated Power
6W/12W/18W
Voltage
48V Low Voltage
Product Name
G1 Series Folding Grille Light
Color Temperature
3000K(warm white) / 4000K(natural white) / 5000K(cold white)
Material
Aluminum Die-cast
Beam Angle
15°/24°/36°
Color
White/Black
CRI
90
Certification & Warranty
CE approved, 5 years warranty



Advantages

48V Low Voltage: Ensures safety during operation while providing ample illumination.

90-Degree Rotation: Allows for flexible adjustment of lighting direction to suit various settings.

Different Wattage Options: Choose from 6W, 12W, or 18W options to meet specific brightness requirements.

Die-Cast Aluminum Housing: Provides durability and efficient heat dissipation for reliable performance.

Options

  • No Dim
  • Bluetooth
  • Zigbee
  • Tuya Dim

Download

Technical Parameter

Model Voltage CRI Power CCT SIZE Lumenious Flux of LED Beam Angle Installation Certification
CX23D06A 48V 90 6W 3000K
4000K
5000K
127*34*53mm 420Lm 15°/24°/36° Magnetic Track Mounted CE
CX23D12A 48V 90 12W 3000K
4000K
5000K
235*34*53mm 840Lm 15°/24°/36° Magnetic Track Mounted CE
CX23D12A 48V 90 18W 3000K
4000K
5000K
343*34*60mm 1260Lm 15°/24°/36° Magnetic Track Mounted CE
