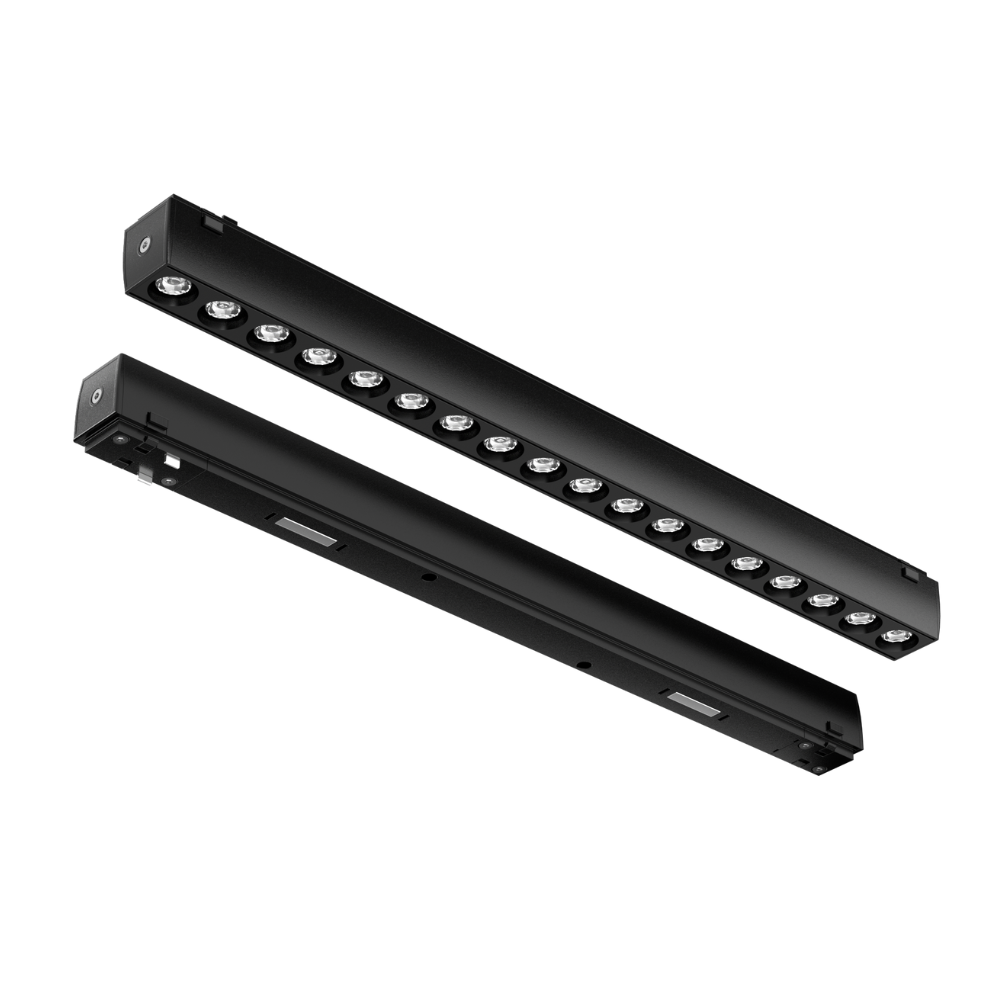

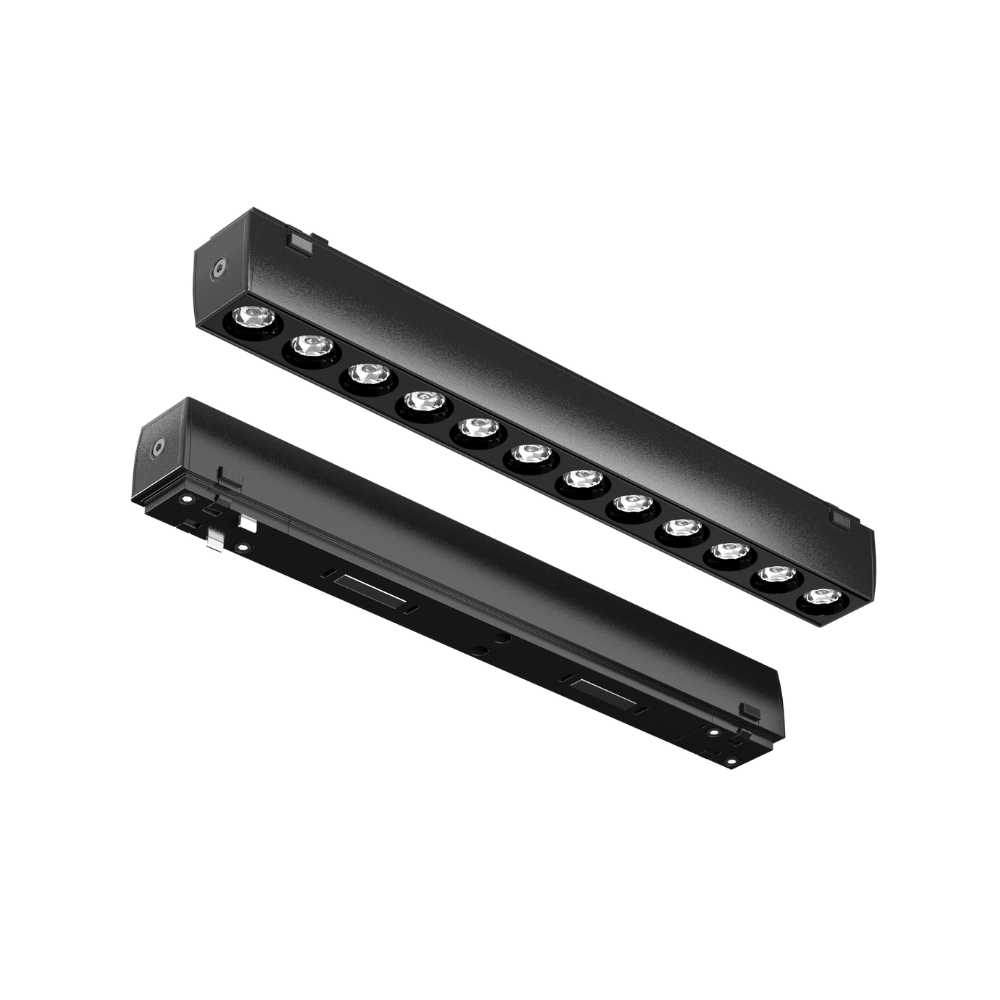

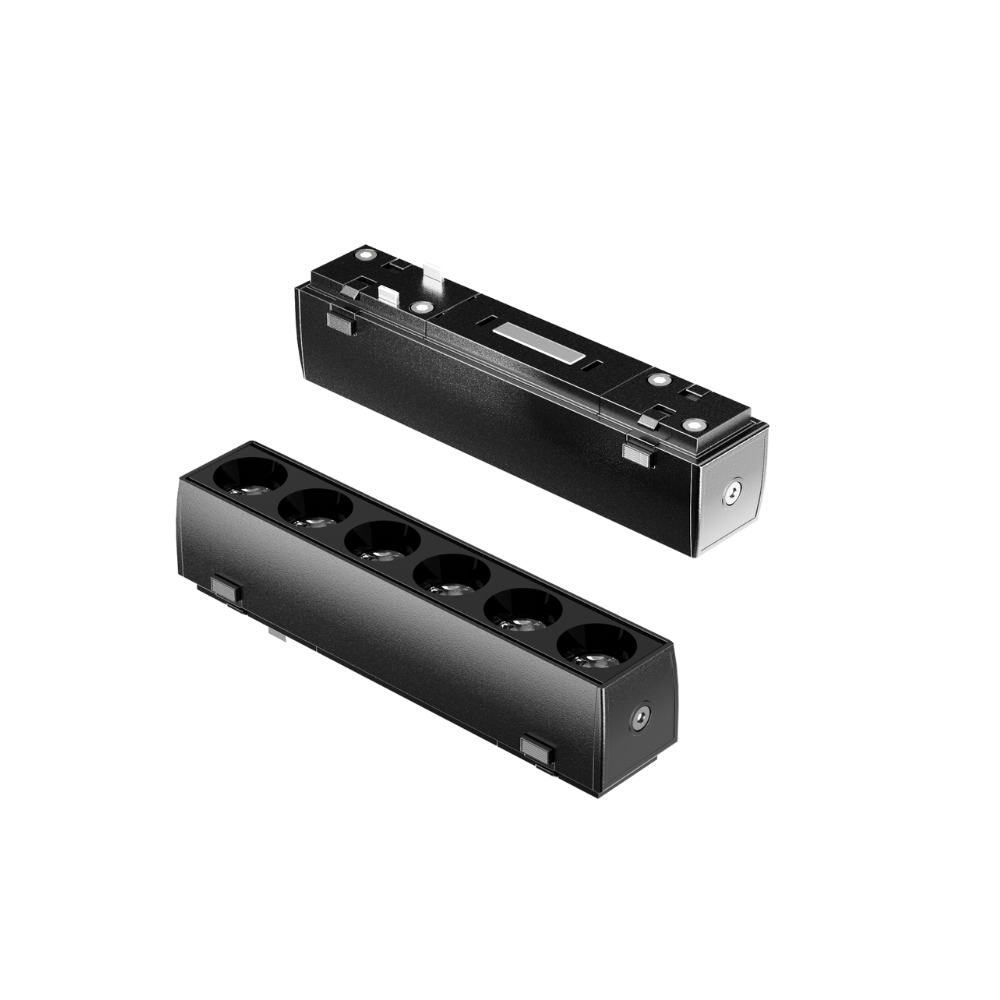

6W 12W 18W 24W 24° 36° Magnetic Linear Light

Model No.
GD23A06A/GD23A12A/GD23A18A/GD23A24A
Light Type
Track Light
Rated Power
6W/12W/18W/24W
Voltage
24/48V
Product Name
G1 Series
Color Temperature
3000K(warm white) – 4000K(natural white) – 5000K(cold white)
Material
Aluminum Die-cast
Beam Angle
24°/36°
CRI
90
System Options
No Dim/ Bluetooth/ Zigbee/ Tuya Dim
Certification & Warranty
CE approved, 5 years warranty

Advantages

Safe Voltage 48V: Operates at a secure 48V voltage level, prioritizing safety without compromising on performance.

Ultra Thin Magnetic Track System: With a track rail thickness of just 8.5mm, it offers a sleek and minimalist design while providing easy installation.

CE Certified: Certified by CE standards, ensuring adherence to strict safety and quality regulations for dependable operation.

Options

  • Black
  • White

Download

Technical Parameter

Model Voltage LED Chip Power CCT CRI Lumenious Flux of LED Beam Angle Installation Driver
GD23A06A 48V SMD 6W 3000K
4000K
5000K
>90 420Lm 24°/36° Track Mounted No Dim/ Bluetooth/ Zigbee/ Tuya Dim
GD23A12A 48V SMD 12W 3000K
4000K
5000K
>90 840Lm 24°/36° Track Mounted No Dim/ Bluetooth/ Zigbee/ Tuya Dim
GD23A18A 48V SMD 18W 3000K
4000K
5000K
>90 1260Lm 24°/36° Track Mounted No Dim/ Bluetooth/ Zigbee/ Tuya Dim
GD23A24A 48V SMD 24W 3000K
4000K
5000K
>90 16801Lm 24°/36° Track Mounted No Dim/ Bluetooth/ Zigbee/ Tuya Dim
