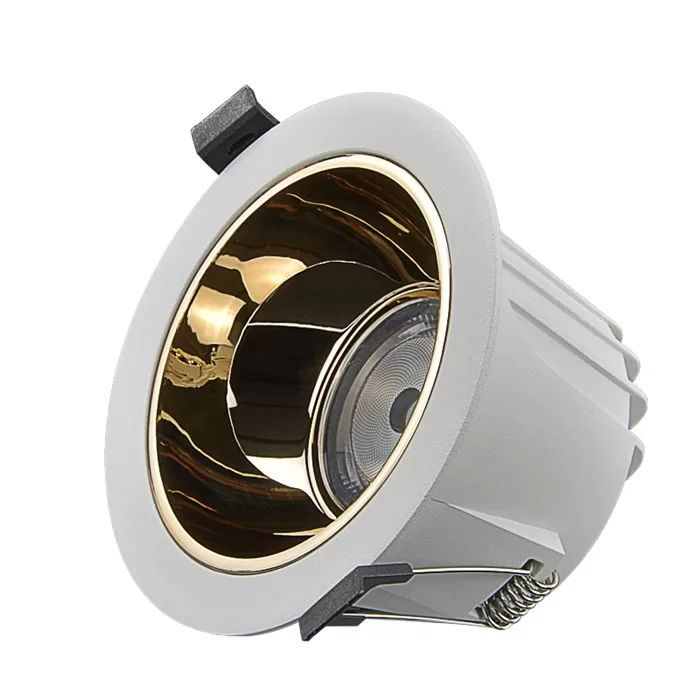

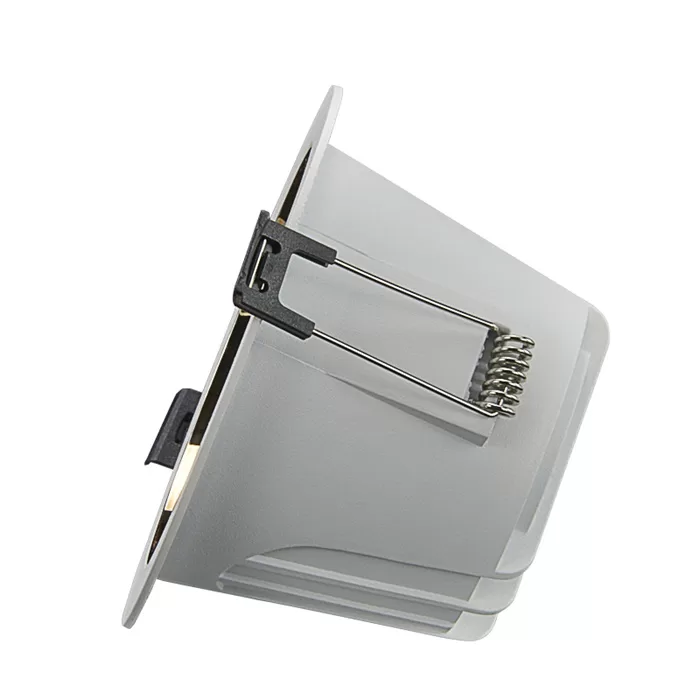

7W-40W 1020-3800 Lumens Ultra Thin LED Anti-glare Recessed Downlight
Advantages
1.High quality of alu housing and construction to make sure down light cooling good enough.
2.High quality of COB and driver solution to make sure down light quality stable enough.
3.Strong Engineer & QC team are good at customizing and offer flexible solution for competitive down light.
Options
- ON-OFF
- TRIAC
- DALI
- CASAMBI
- TUYA
- Honey Comb
Download
Technical Parameter
| Model | Voltage | LED Chip | Power |  CCT |
CRI | Lumenious Flux of LED |  Beam Angle |
Installation | Power Supply |
| TD25l10C | 180-265V 50/60Hz | COB | 7W-12W | 3000K
4000K 5000K 6000K or Customized |
≥80 / 90 | 1020Lm-1140Lm | 90° | 4 wires 3phase Track adaptor | Include Built-in Driver |
| TD25l20C | 180-265V 50/60Hz | COB |
15W-20W | 3000K
4000K 5000K 6000K or Customized |
≥80 / 90 |
1700Lm-1900Lm | 90° | 4 wires 3phase Track adaptor | Include Built-in Driver |
| TD25l25C | 180-265V 50/60Hz | COB |
24W-30W | 3000K
4000K 5000K 6000K or Customized |
≥80 / 90 |
2550Lm-2850Lm | 90° | 4 wires 3phase Track adaptor | Include Built-in Driver |
| TD25l35C | 180-265V 50/60Hz | COB |
36W-40W | 3000K
4000K 5000K 6000K or Customized |
≥80 / 90 | 3400Lm-3800Lm | 90° | 4 wires 3phase Track adaptor | Include Built-in Driver |
INQUIRY
