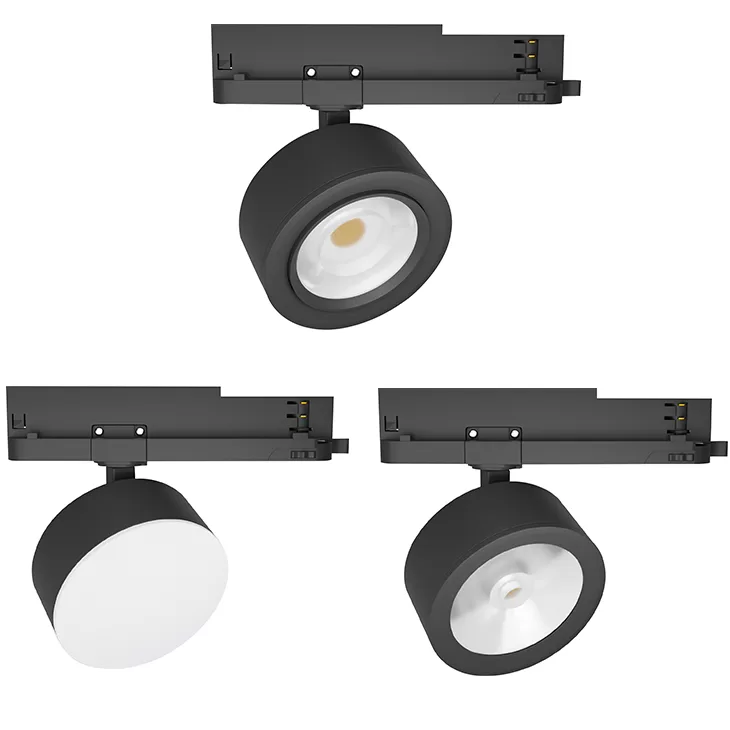

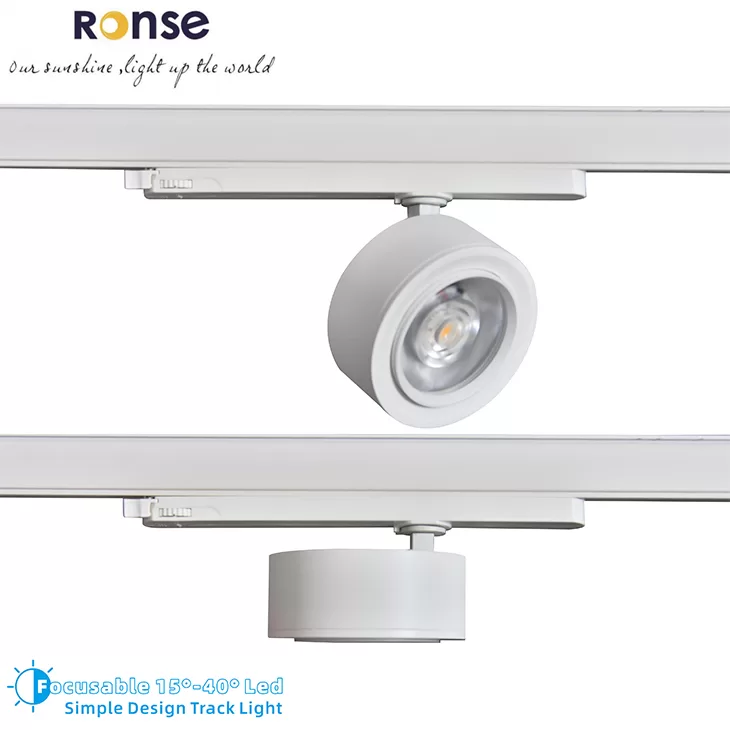

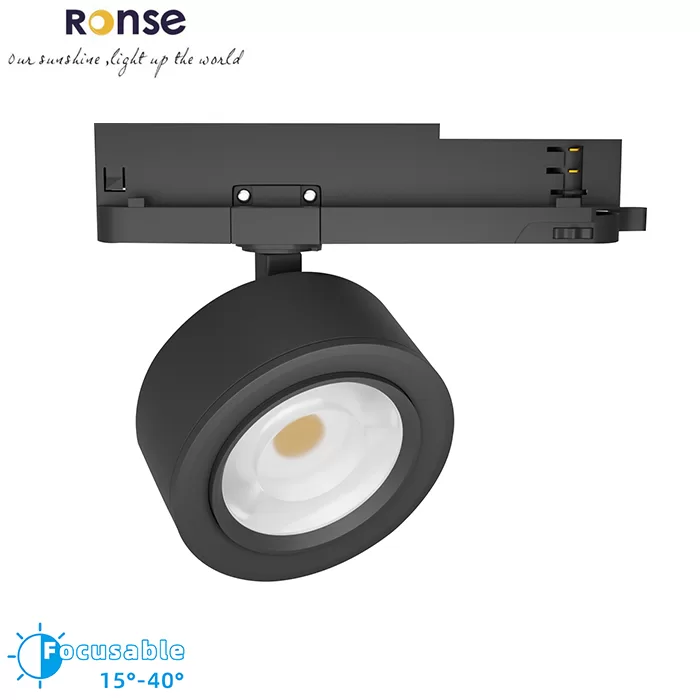

18W / 28W / 38W 2700K-6500K Zoomable Track Light

Model No.
GD20P20C / GD20P30C / GD20P40C
Light Type
Track Light
Rated Power
18W/28W/38W
Voltage
220-240VAC
Product name
Zoomable Track Light
Color Temperature
3000K(warm white) / 4000K(natural white)/5000K(cold white)/6500K(cold white)
Material
Aluminum Alloy
Battery
NA
Charging time
NA
Working mode
on/off
Solar panel
NA
Number of light source
Waterproof grade
IP20
Life time
30000 hours
Lighting area
50m2
Packing quantity
10PCS/CTN

Options

  • ON-OFF
  • TRIAC
  • DALI
  • CASAMBI
  • TUYA
  • Honey Comb

Download

The special feature of the discreet GD20P20C series LED track spotlight is its extremely slim housing, which almost merges with the track visually.  This is made possible by integrating the driver into the adapter.  The result is a very calm ceiling lighting appearance.  At the same time, the spotlight offers flexible illumination: the spotlight head can be rotated by 355°, tilted by 90°, and zoomable15°-45°.  Maximum power is available with lumen packages from 2,000 to 4,000 lm and a choice of six white light colours.  Pinpoint illumination thanks to five different 3-D faceted reflectors.  Smart light management can be implemented with a control line or wirelessly for low-installation modernisation.

Technical Parameter

Model Power Supply CRI Power CCT(K) Lumenious Flux of LED Beam Angle Size(mm)
GD20P20C Include Built-in Driver
Ra80/Ra90/Ra97 18W±10% 2700K-6500K >2000lm 15°-45° Φ80 *85
GD20P30C Include Built-in Driver
Ra80/Ra90/Ra97 28W±10% 2700K-6500K >3000lm 15°-45°
Φ110*91
GD20P40C Include Built-in Driver Ra80/Ra90/Ra97 38W±10% 2700K-6500K >4000lm 15°-45°
Φ135*94
