40W / 55W 5600lm 7710lm High Luminous Efficiency Linear Light Track

Model No.
GD23H40A / GD23H60A
Light Type
Track Light
Rated Power
40W/55W
Voltage
220-240VAC
Product Name
Angel 7 Double Sides Illumination
Color Temperature
3000K(warm white) / 4000K(natural white) / 5000K(cold white) or 3CCT Switchable
Material
Aluminum Die-cast
Beam Angle
30°/60°/90°
Lifespan
50,000 Hours
Working mode
on/off
Certification & Warranty
CE approved, 5 years warranty



Advantages

Double Sides Illumination: Provides illumination from both sides of the fixture, doubling the coverage area.

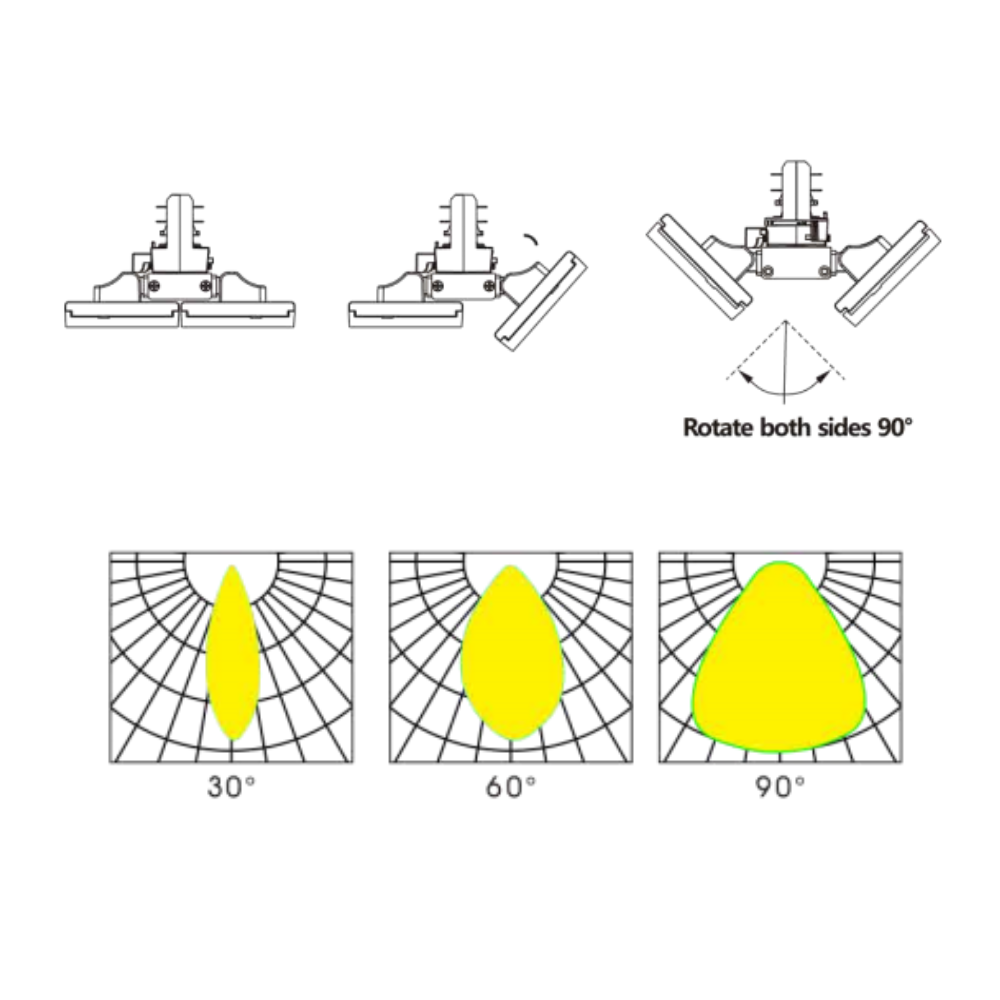

90-Degree Rotation on Both Sides: Each side of the light can be rotated up to 90 degrees, allowing for flexible lighting adjustments.

Various Beam Angles: Choose from multiple beam angle options, including 30, 60, and 90 degrees, for tailored lighting effects.

CE Approved and 5 Years Warranty: Certified by CE standards and supported by a 5-year warranty, ensuring high quality and long-term reliability.

Options

  • ON-OFF
  • TRIAC
  • DALI
  • 1-10V

Download

Technical Parameter

Model Voltage LED Chip Power CCT CRI Lumenious Flux of LED Beam Angle Installation Power Supply
GD23H40A 220-240V 50/60Hz SMD 40W/55W 3000K
4000K
5000K
>80 / 90 5600Lm/7700Lm 30°/60°/90° 2 wires

3 wires

4 wires

Integrated Adapter Driver
GD23H60A 220-240V 50/60Hz SMD 40W/55W 3000K
4000K
5000K
>80 / 90 5600Lm/7700Lm 30°/60°/90° 2 wires

3 wires

4 wires

Integrated Adapter Driver
