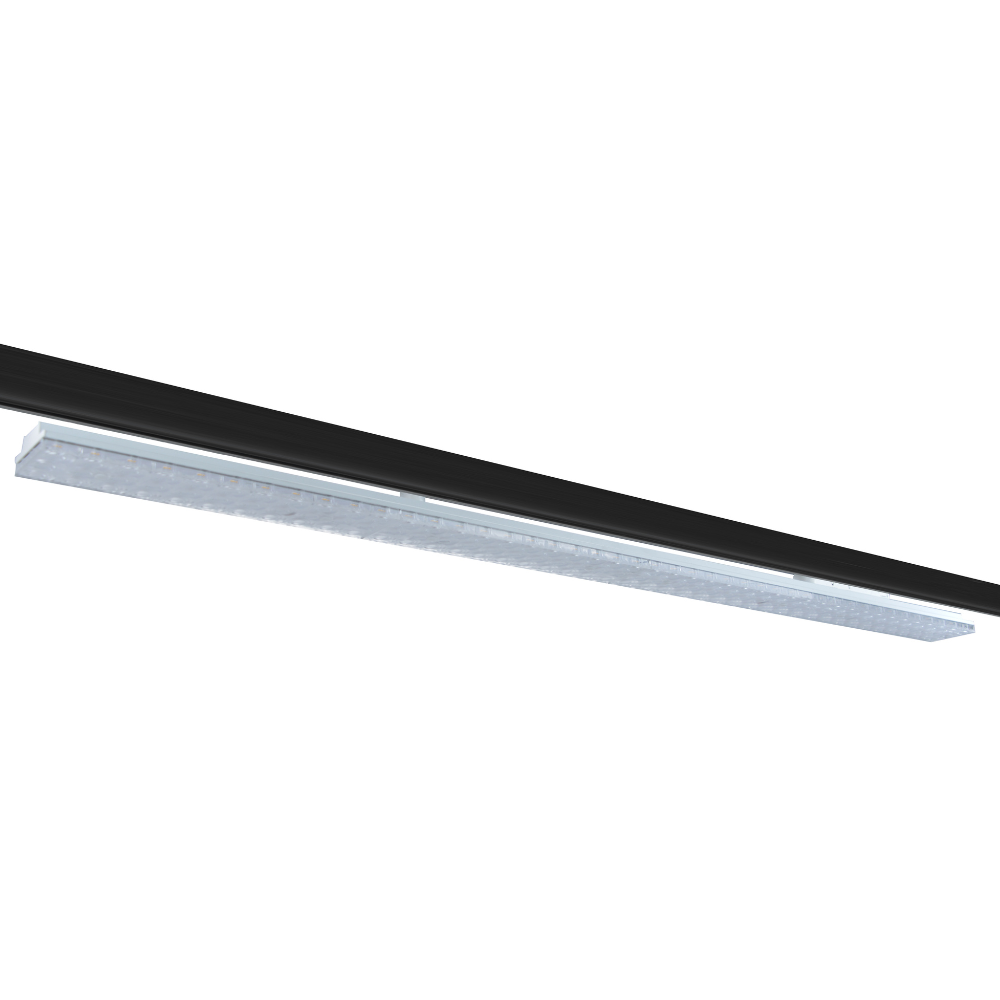

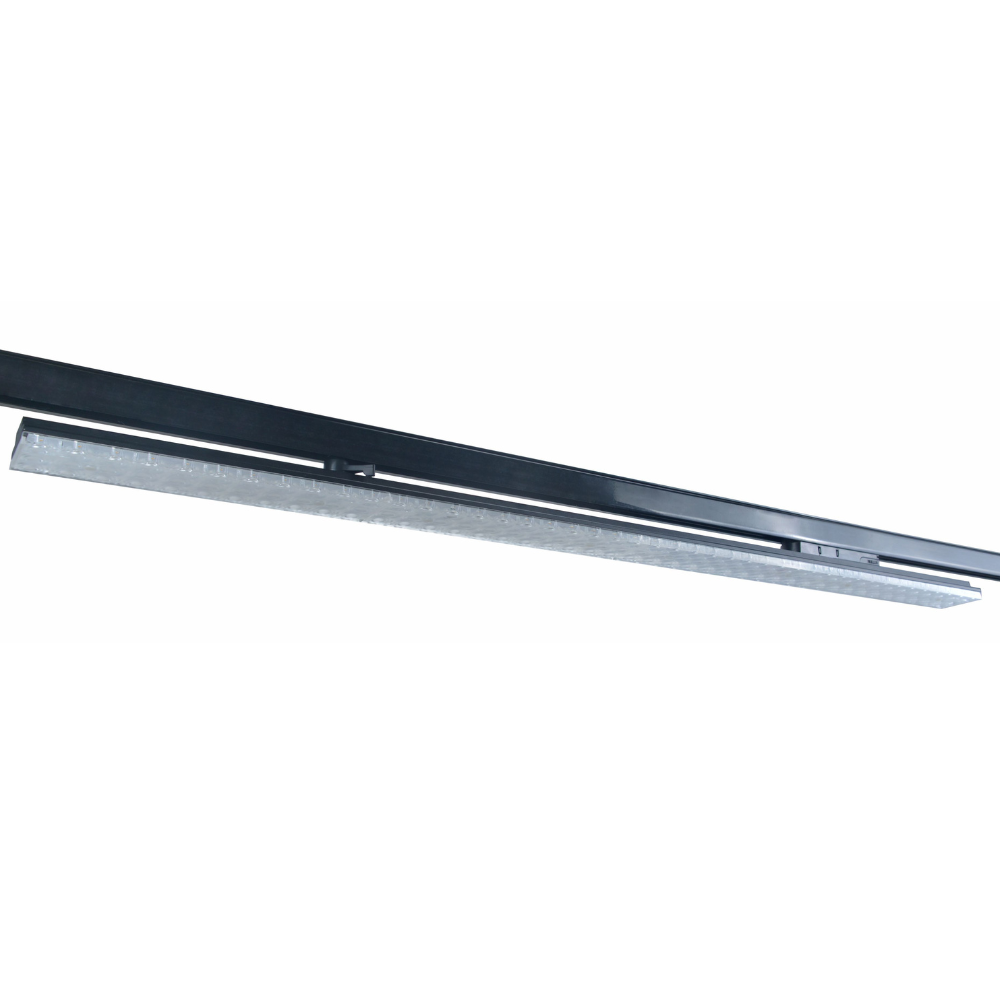

20W / 30W / 40W / 55W 3000K-5000K Multiple Functions LED Linear Track Light

Model No.: GD22B20A / GD22B40A / GD22B60A

Light Type: Linear Track Light

Rated Power: 20W/30W/40W/55W

Voltage: 220-240VAC

Product Name: Angel 5 Lens

Color Temperature: 3000K(warm white) / 4000K(natural white) / 5000K(cold white)

Material: Aluminum Die-cast

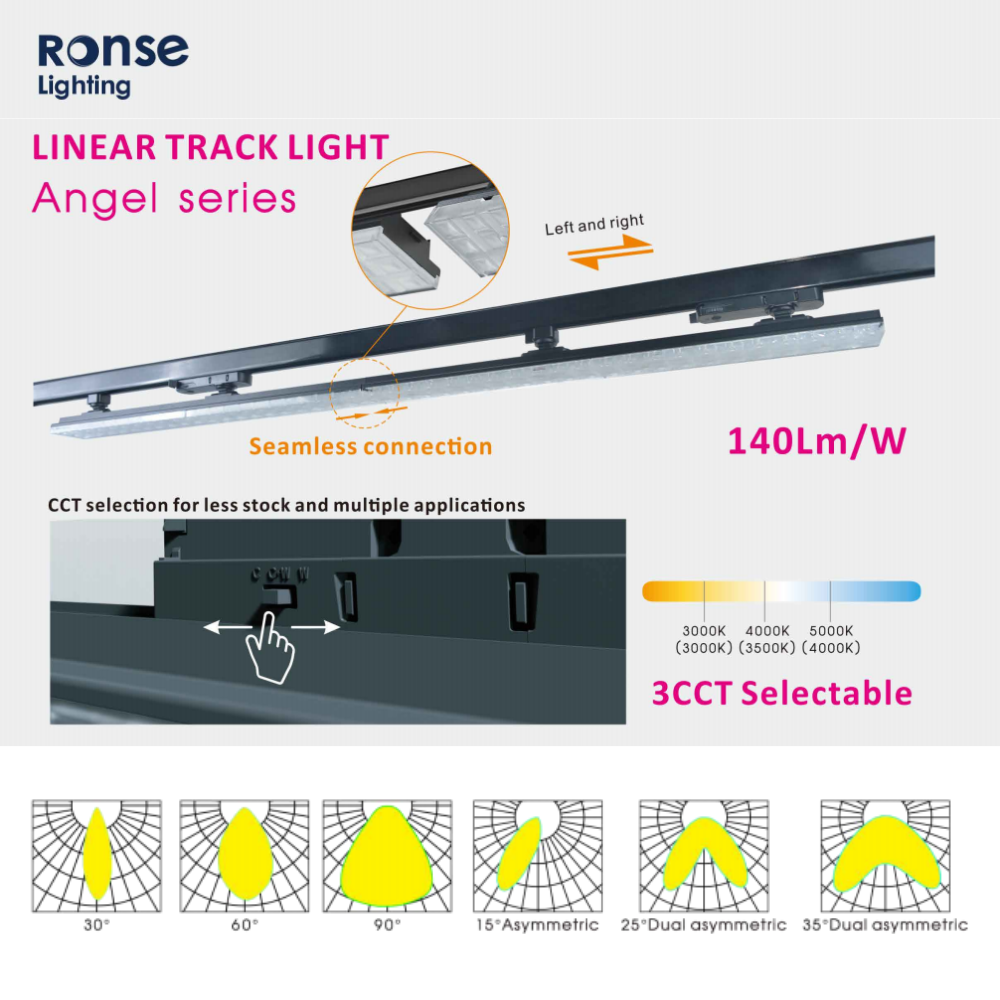

Beam Angle: 30°/60°/90°/15° Asymmetric/25° Dual Asymmetric/35° Dual Asymmetric

Lifespan: 50,000 Hours

Working mode: on/off

Certification & Warranty: CE approved, 5 years warranty

Options

ON-OFF
TRIAC
DALI
1-10V
CCT Switchable

Download

Technical Parameter

Model	Voltage	LED Chip	Power	CCT	CRI	Lumenious Flux of LED	Beam Angle	Installation	Power Supply
GD22B20A	220-240V 50/60Hz	SMD	20W/30W	3000K 4000K 5000K	＞80 / 90	2800Lm/4200Lm	30°/60°/90°/15° Asymmetric/25° Dual Asymmetric/35° Dual Asymmetric	2 wires 3 wires 4 wires	Integrated Adapter Driver
GD22B40A	220-240V 50/60Hz	SMD	40W/55W	3000K 4000K 5000K	＞80 / 90	5600Lm/7700Lm	30°/60°/90°/15° Asymmetric/25° Dual Asymmetric/35° Dual Asymmetric	2 wires 3 wires 4 wires	Integrated Adapter Driver
GD22B60A	220-240V 50/60Hz	SMD	55W	3000K 4000K 5000K	＞80 / 90	7700Lm	30°/60°/90°/15° Asymmetric/25° Dual Asymmetric/35° Dual Asymmetric	2 wires 3 wires 4 wires	Integrated Adapter Driver
