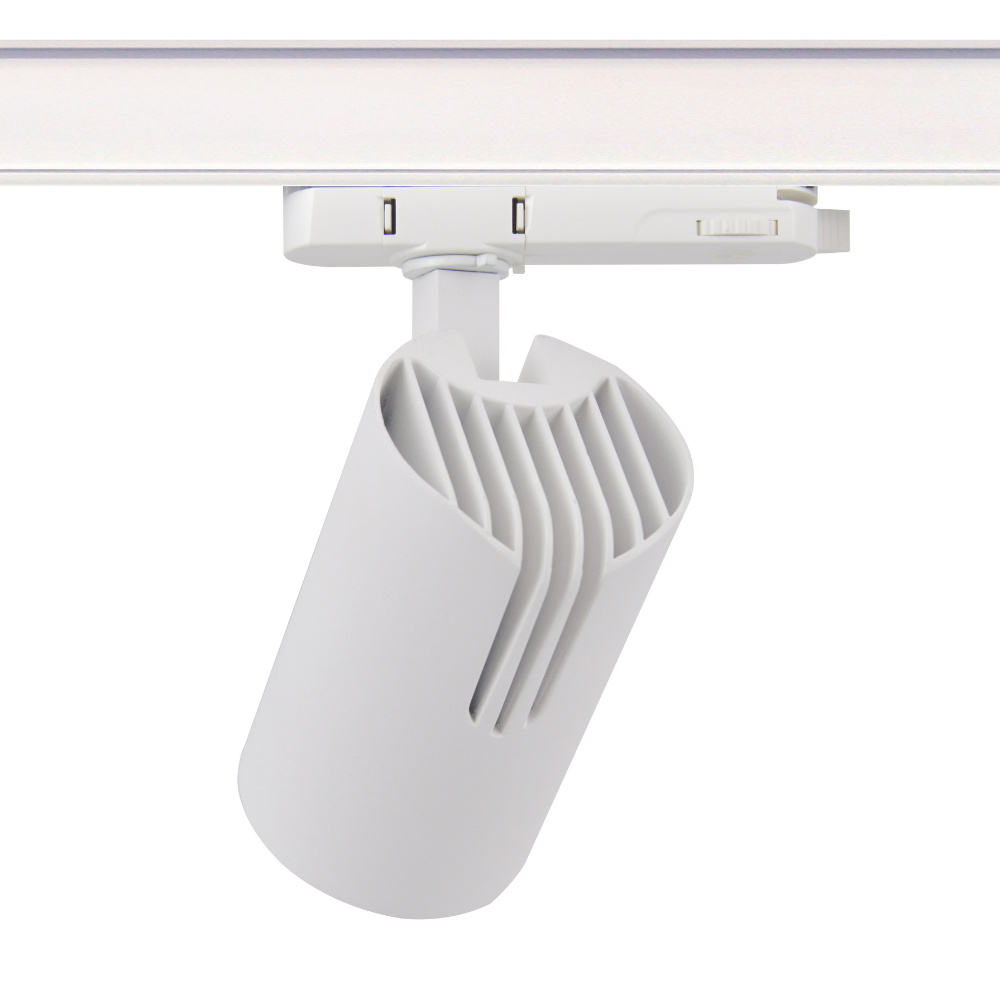

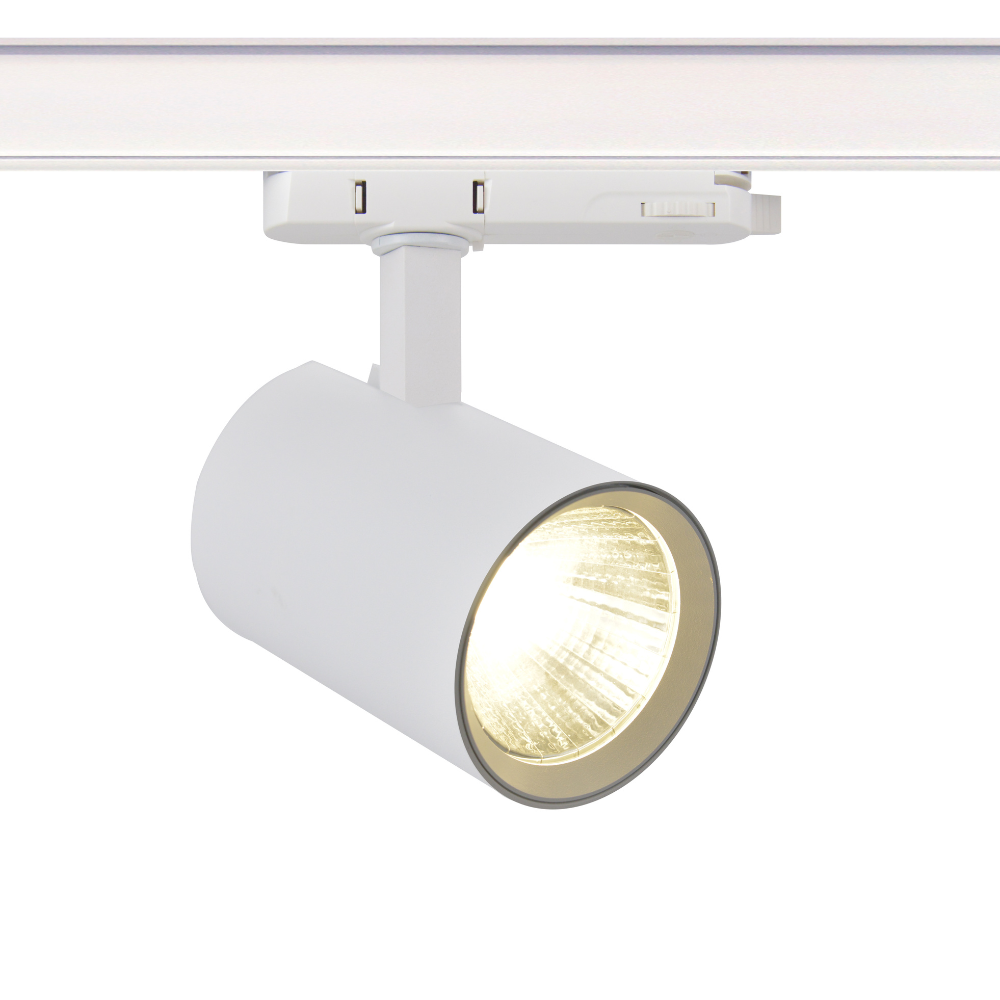

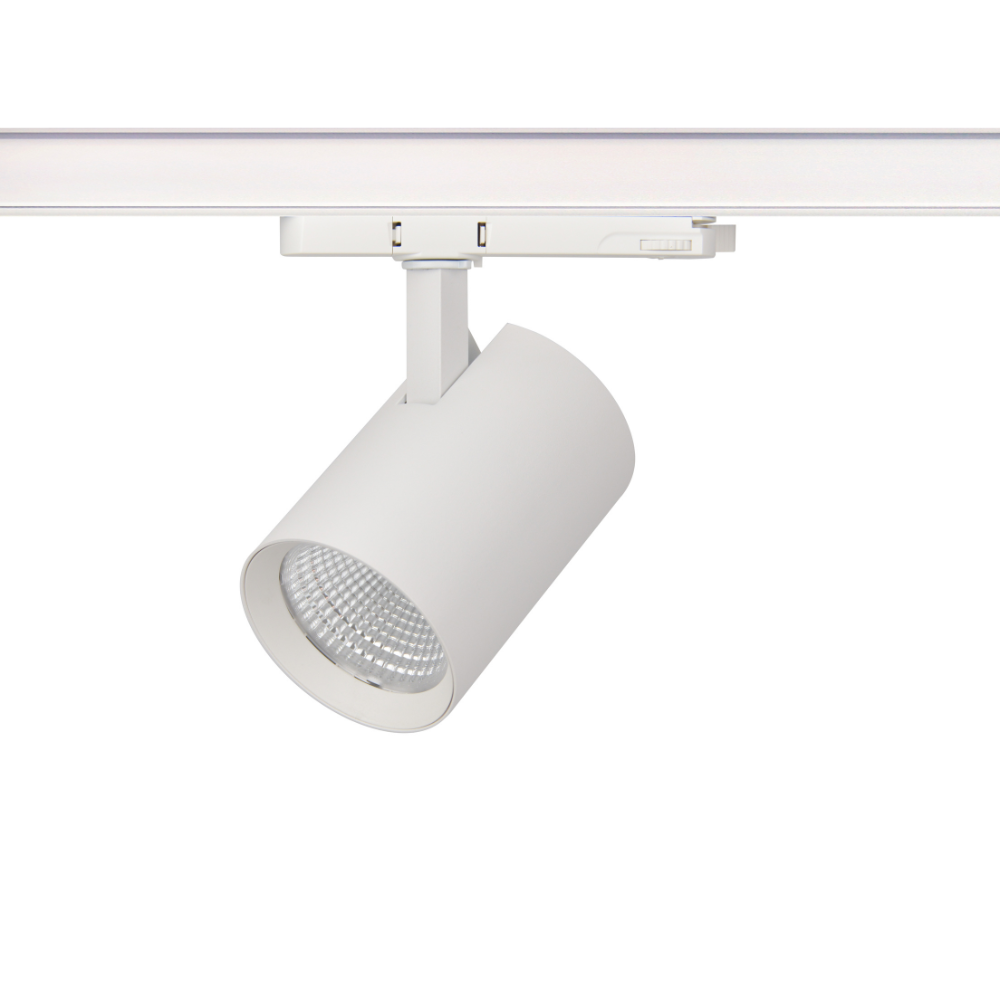

20W / 30W / 40W / 50W 2700-5000K 4 Wires 3 Phases LED Track Light

Model No.
GD23C20A / GD23C30A / GD23C40A
Light Type
Track Light
Rated Power
20W/30W/40W/50W
Voltage
220-240VAC
Product Name
Black Holes1
Color Temperature
2700K(warm white) / 3000K(warm white) / 4000K(natural white) / 5000K(cold white)
Material
Aluminum Die-cast
Beam Angle
15°/24°/36°
Lifespan
50,000 Hours
Working mode
on/off
Certification & Warranty
CE approved, 5 years warranty

Options

  • ON-OFF
  • TRIAC
  • DALI
  • 1-10V
  • Honey Comb
  • Alanod Reflector
  • CCT Switchable

Download

Technical Parameter

Model Voltage LED Chip Power CCT CRI Lumenious Flux of LED Beam Angle Installation Power Supply
GD23C20A 220-240V 50/60Hz COB 20W/30W 3000K
4000K
5000K
>80 / 90 2770Lm/3690Lm 15°24°36° 2 wires

3 wires

4 wires

Integrated Adapter Driver
GD23C30A 220-240V 50/60Hz COB
30W/40W
3000K
4000K
5000K
>80 / 90
3690Lm/4620Lm
15°24°36° 2 wires

3 wires

4 wires

Integrated Adapter Driver
 GD23C40A 220-240V 50/60Hz COB
40W/50W
3000K
4000K
5000K
>80 / 90
4620Lm/6925Lm
15°24°36° 2 wires

3 wires

4 wires

Integrated Adapter Driver
