12w 20w 30w 40w Led Spot Track Light CCT Moving Head Track Light

Model No.
GD21D12A / GD21D20A / GD21D30A / GD21D40A
Light Type
Track Light
Rated Power
12W/20W/30W/40W
Voltage
220-240VAC
Product name
CCT Track Light
Color Temperature
2700K(warm white) / 4000K(natural white) / 5000K(cold white)
Material
Aluminum Alloy
Battery
NA
Charging time
NA
Working mode
on/off
Solar panel
NA
Number of light source
1
Waterproof grade
IP20
Life time
30000 hours
Lighting area
50m2
Packing quantity
30PCS/CTN

Options

  • ON-OFF
  • TRIAC
  • DALI
  • CASAMBI
  • TUYA
  • Honey Comb

Download

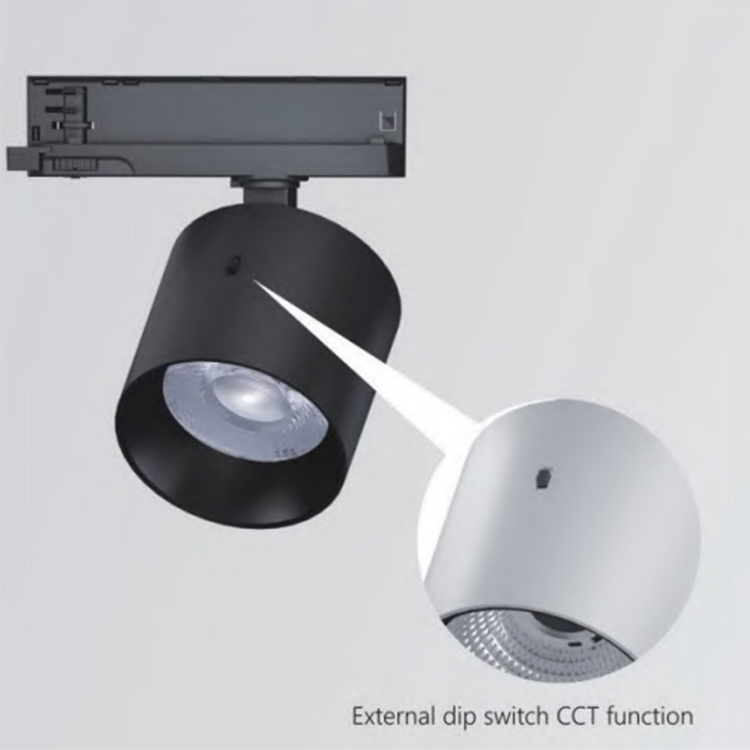

The special feature of the discreet GD21D12A series LED track spotlight is its extremely slim housing, which almost merges with the track visually.  This is made possible by integrating the driver into the adapter.  The result is a very calm ceiling lighting appearance.  At the same time, the spotlight offers flexible illumination: the spotlight head can be rotated by 355°, tilted by 90°.  Maximum power is available with lumen packages from 1,200 to 4,000 lm and CCT function by enternal DIP switch.

Model

Power Supply

CRI Power CCT(K) Lumenious Flux of LED Beam Angle Size(mm)
GD21D12A

In-Track Driver

Ra80/Ra90/Ra97 12W±10%

2700K-5000K

>1200lm

15°/24°/38°/45°/60°

Φ60*66.5
GD21D20A In-Track Driver Ra80/Ra90/Ra97 20W±10%

2700K-5000K

>2000lm

15°/24°/38°/45°/60°

Φ75*77
GD21D30A In-Track Driver Ra80/Ra90/Ra97 30W±10%

2700K-5000K

>3000lm

15°/24°/38°/45°/60°

Φ90*90
GD21D40A In-Track Driver Ra80/Ra90/Ra97 40W±10%

2700K-5000K

>4000lm

15°/24°/38°/45°/60°

Φ100*99
