12w 20w 30w 40w Led Spot Track Light CCT 2700-5000K Moving Head Track Light

Model No.: GD21F12A / GD21F20A / GD21F30A / GD21F40A

Light Type: Track Light

Rated Power: 12W/20W/30W/40W

Voltage: 220-240VAC

Product name: CCT Track Light

Color Temperature: 2700K(warm white) / 4000K(natural white) / 5000K(cold white)

Material: Aluminum Alloy

Battery: NA

Charging time: NA

Working mode: on/off

Solar panel: NA

Number of light source: 1

Waterproof grade: IP20

Life time: 30000 hours

Lighting area: 50m2

Packing quantity: 30PCS/CTN

Options

ON-OFF
TRIAC
DALI
CASAMBI
TUYA
Honey Comb

Download

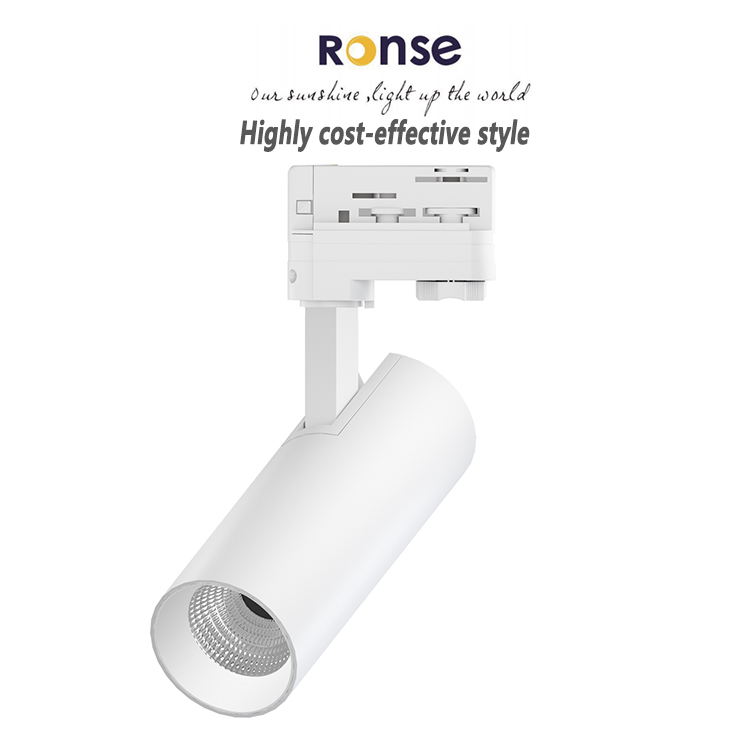

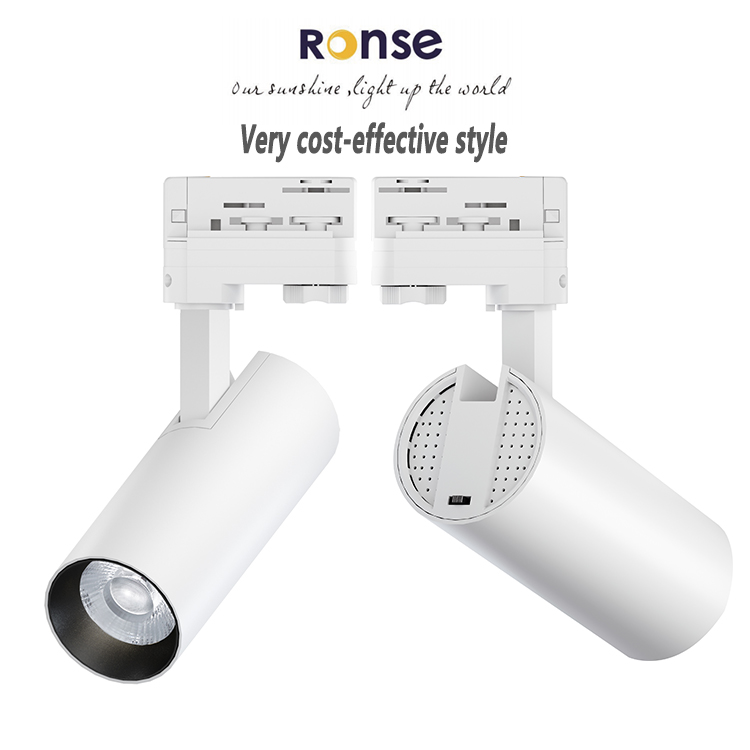

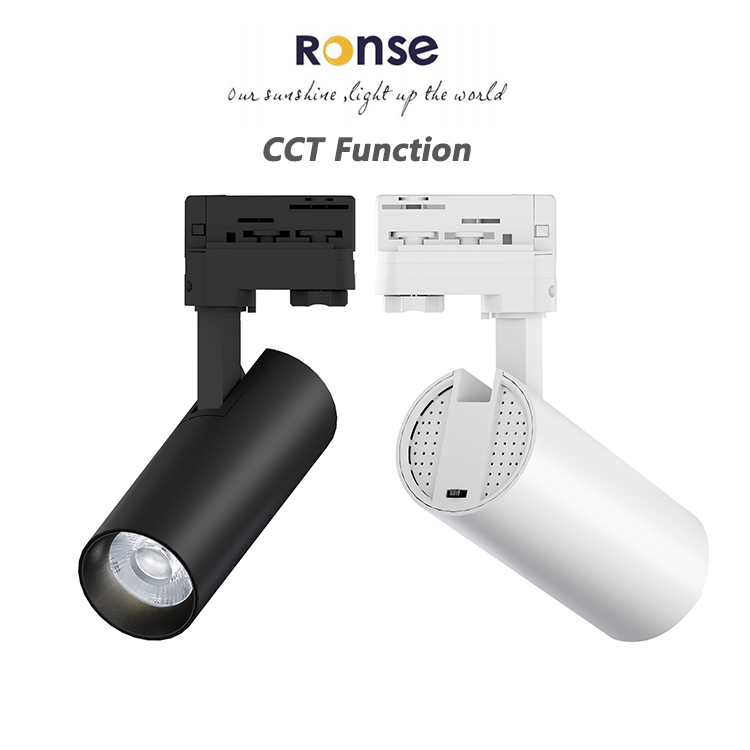

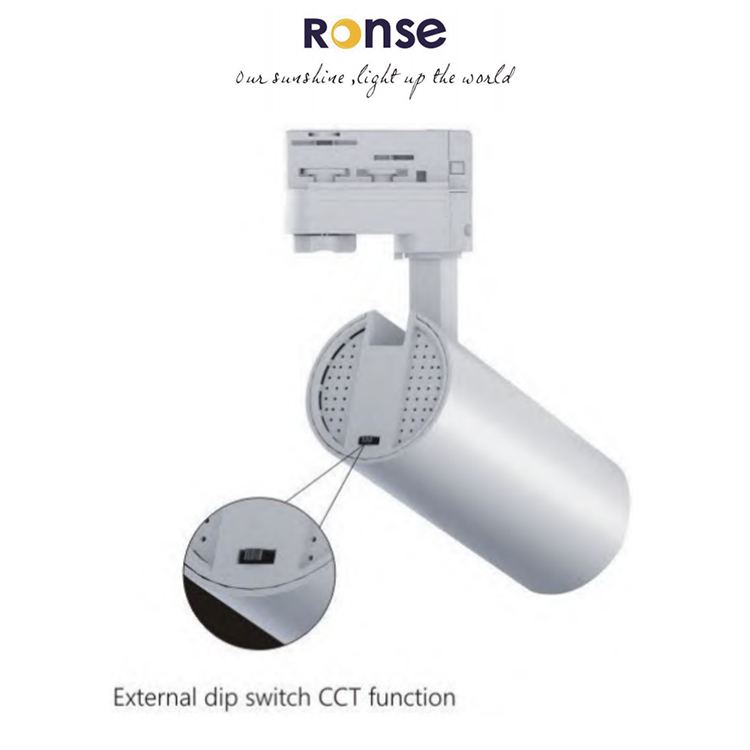

The special feature of the discreet GD21F12D series LED track spotlight is its extremely slim housing, which almost merges with the track visually. This is made possible by integrating the driver into the adapter. The result is a very calm ceiling lighting appearance. At the same time, the spotlight offers flexible illumination: the spotlight head can be rotated by 355°, tilted by 90°. Maximum power is available with lumen packages from 1,200 to 4,000 lm and CCT function by enternal DIP switch.

Model	Power Supply	CRI	Power	CCT(K)	Lumenious Flux of LED	Beam Angle	Size(mm)
GD21F12A	In-Track Driver	Ra80/Ra90/Ra97	12W±10%	2700K-5000K	＞1200lm	15°/24°/38°/45°/60°	Φ55*150
GD21F20A	In-Track Driver	Ra80/Ra90/Ra97	20W±10%	2700K-5000K	＞2000lm	15°/24°/38°/45°/60°	Φ60*165
GD21F30A	In-Track Driver	Ra80/Ra90/Ra97	30W±10%	2700K-5000K	＞3000lm	15°/24°/38°/45°/60°	Φ74*175
GD21F40A	In-Track Driver	Ra80/Ra90/Ra97	40W±10%	2700K-5000K	＞4000lm	15°/24°/38°/45°/60°	Φ90*190
